Fiber Laser Cutting Lite

WM Series - F-Lite is Whale Machineries baseline laser cutting machine designed to provide the best value for price in the market. Whale Machineries is popular for intervening in the industry with pioneering innovations and this laser system provides excellent cutting quality as well as superior productivity. With its relentless attributes, it is turning out to be the favorite of fabricators.

WM Series - F-Lite is a product of Whale Machineries trademark Fiber Laser cutting series which stands tall in reliability, efficiency and productivity. It is designed for manufacturers and fabricators ready to start with Laser cutting technology and expecting productivity at an affordable price and minimum lead time for supply made to order.

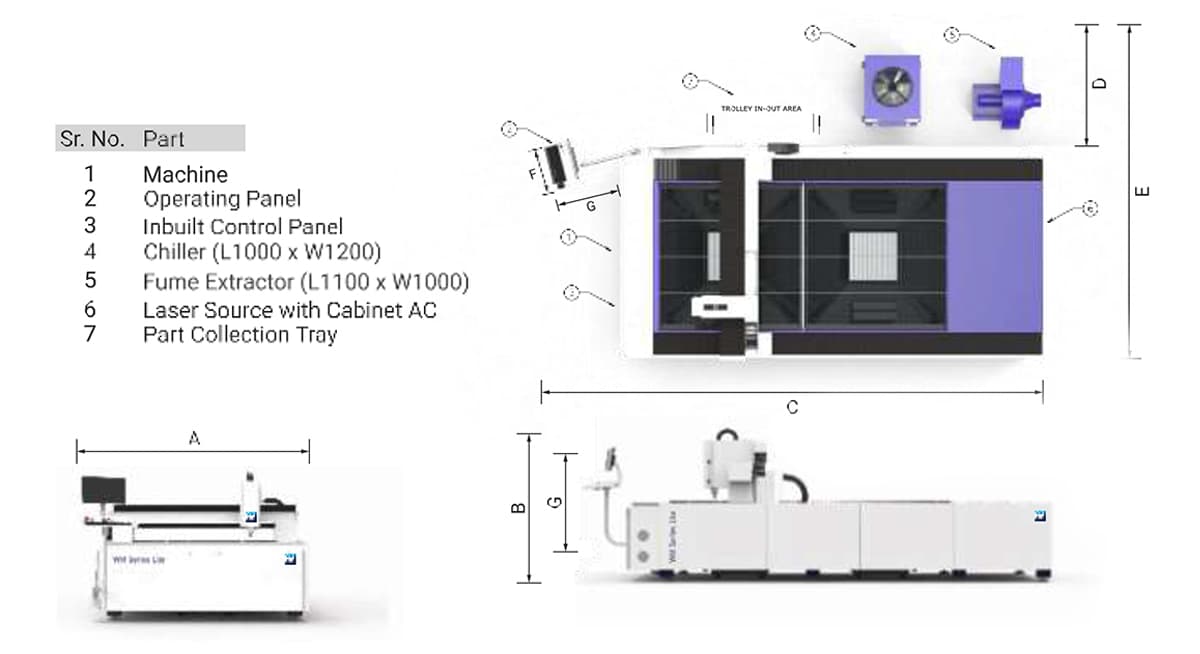

TECHNICAL SPECIFICATION

# Model WM-F-LITE 3015 WM-F-LITE 6025
A Machine Width 2450 3250
B Machine Height 2200 2600
C Machine Height 4850 8500
D Space Required for Accessories 1150 1150
E Total Machine width with Accessories 3600 4500
F Width of Operating Panel 550 550
G Length of Operating Panel 850 850

CUTTING CHART

# MATERIALS 1.5 KW 3 KW 6 KW 12 KW
1 MILD STEEL ( O2 ) 10 MM 16 MM 20 MM 40 MM
2 STAINLESS STEEL ( N2 ) 5 MM 8 MM 12 MM 28 MM
3 ALUMINIUM ( N2 ) 4 MM 6 MM 10 MM 26 MM
4 BRASS ( N2 ) 4 MM 6 MM 10 MM 26 MM
5 COPPER ( O2 ) 3 MM 5 MM 8 MM 15 MM

SPECIFICATION

ITEM SPECIFICATIONS
Laser Source IPG / RAYCUS / MAX / JPT
Working Area 3000 x 1500 / 4000 x 2000 / 6000 x 2000
Drive Motors Yaskawa or Panasonic AC Servo Motors
Cutting Head Raytools Auto-Focus
Z Axis 150 mm
Z Axis with Dual Pallet 250 mm
LM Rails X, Y HIWIN
Chiller HEXACOOL
CNC Controller FS Cut / CYP Cut
Rack & Pinion YYC
Electronic Pressure Regulator SMC
Gas Line & Filter SMC
Gearbox YYC
Acceleration 1.0 G
Position Accuracy ≤ ± 0.05 mm / m
Repositioning Accuracy ≤ ± 0.03 mm
Maximum Rapid Speed 80 meters / min
Cutting Speed 20 meters / min

FEATURES

  • Durable Rack-and-Pinion motion system.
  • Back panel with Climate Control AC for electronics.
  • Top drag chain concept making machine compact and more safe.
  • Light weight Gantry for high dynamics with synchronized dual servo motors.
  • Isolated HV protected control panel specially build
  • Auto Focus Cutting Head.
  • Machine dynamics 200 holes / min.
  • Fireproof bellow for safety.
  • Dust proof gas line for gas flow
